communication

CALLSIGN  PC6201
MMSI          244210245
Iridium      +881631555500

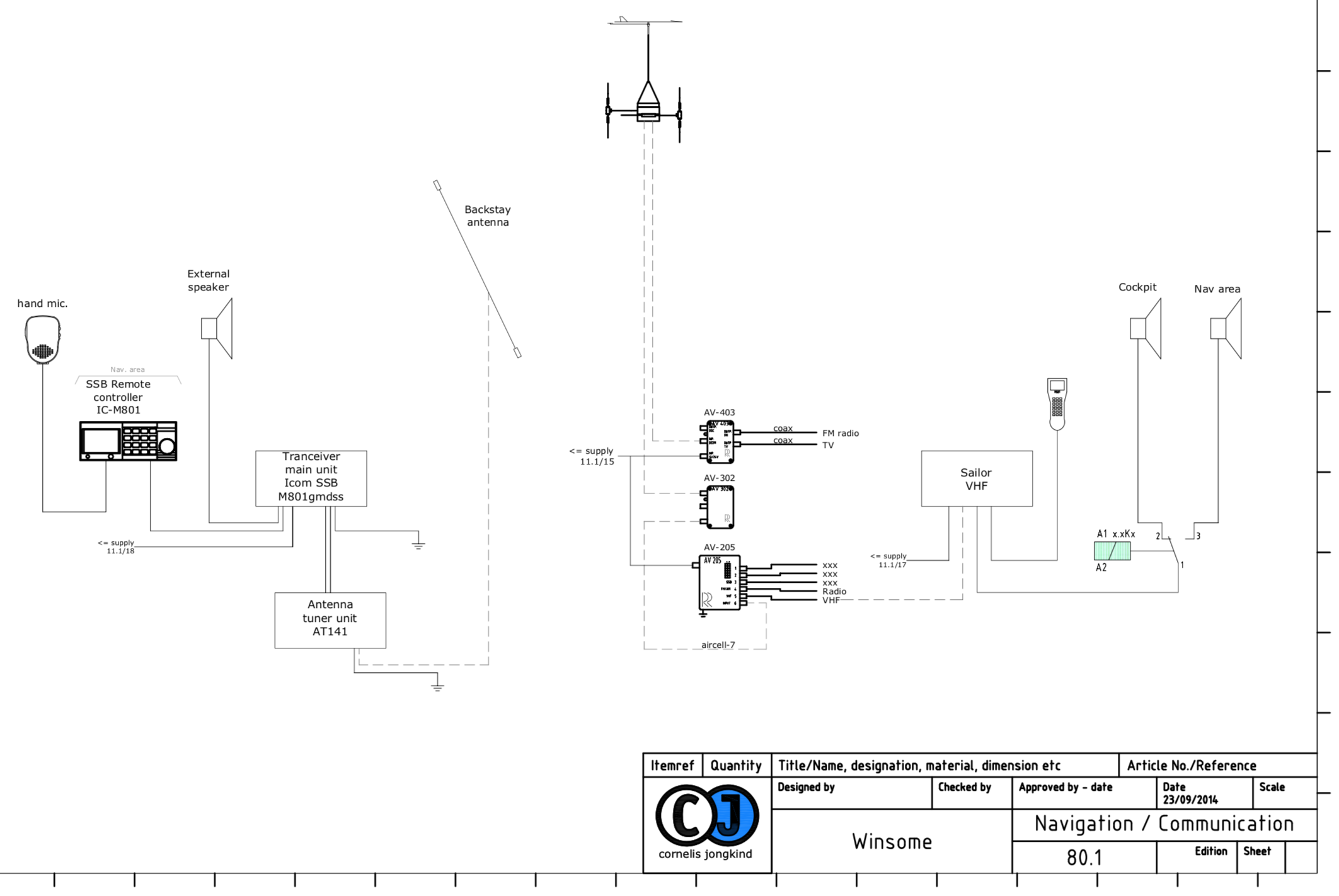

VHF/HF scematic

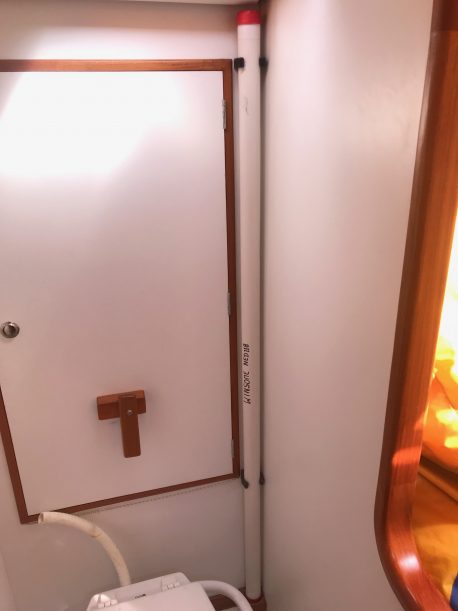

VHF;The main VHF is a SIMRAD RS 90. The VHF antenna is situated at the masthead. An emergency VHF antenna is stored in the head compartment and can in case of masthead antenna failure be connected to the coax connection behind the main panel in the nav station.

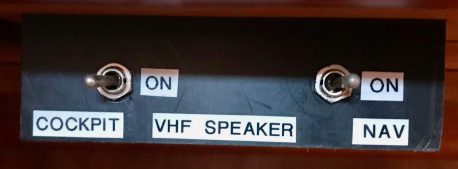

The main VHF is connected to a cockpit speaker. A separate switch turns the cockpit speaker on (aft) or off (forward).

Handheld VHF; ICOM M-71 stored in its charger in the galley. The charger only charges when the 12V/230V convertor is switched on.
Iridium Sat Phone Iridium 9555 mounted in the nav table.
AIS transponder
4G Router
MF/HF transceiver; ICOM M-801 (only operational if HF antenna fitted)
